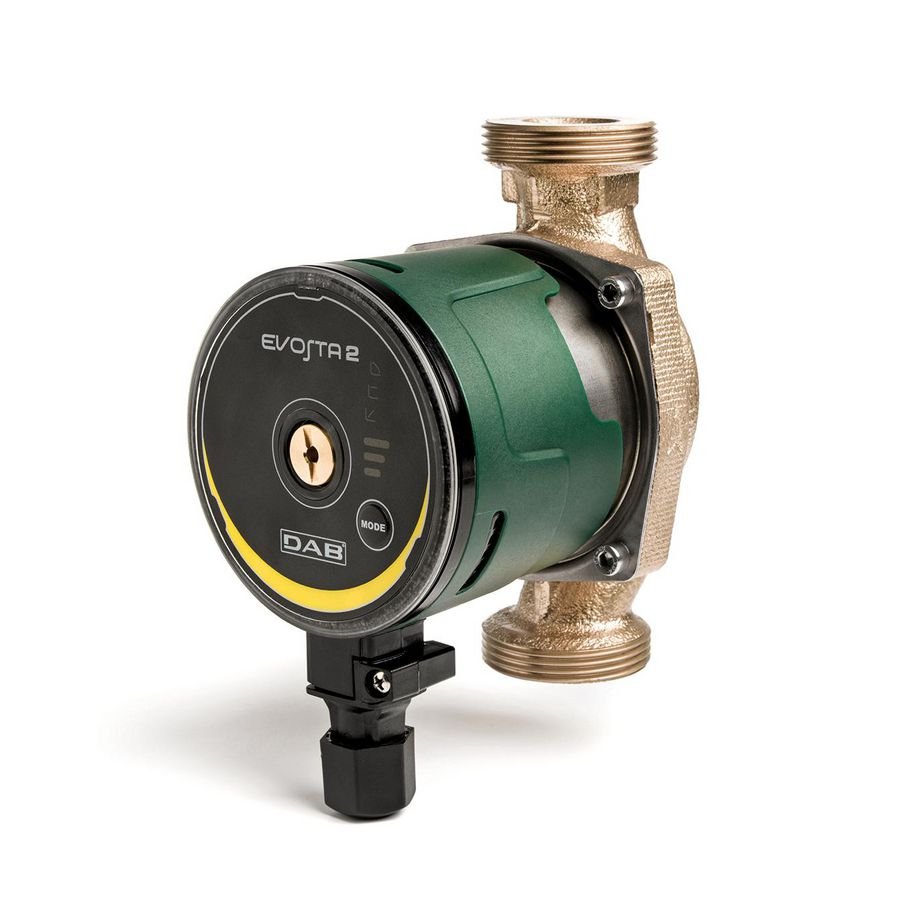

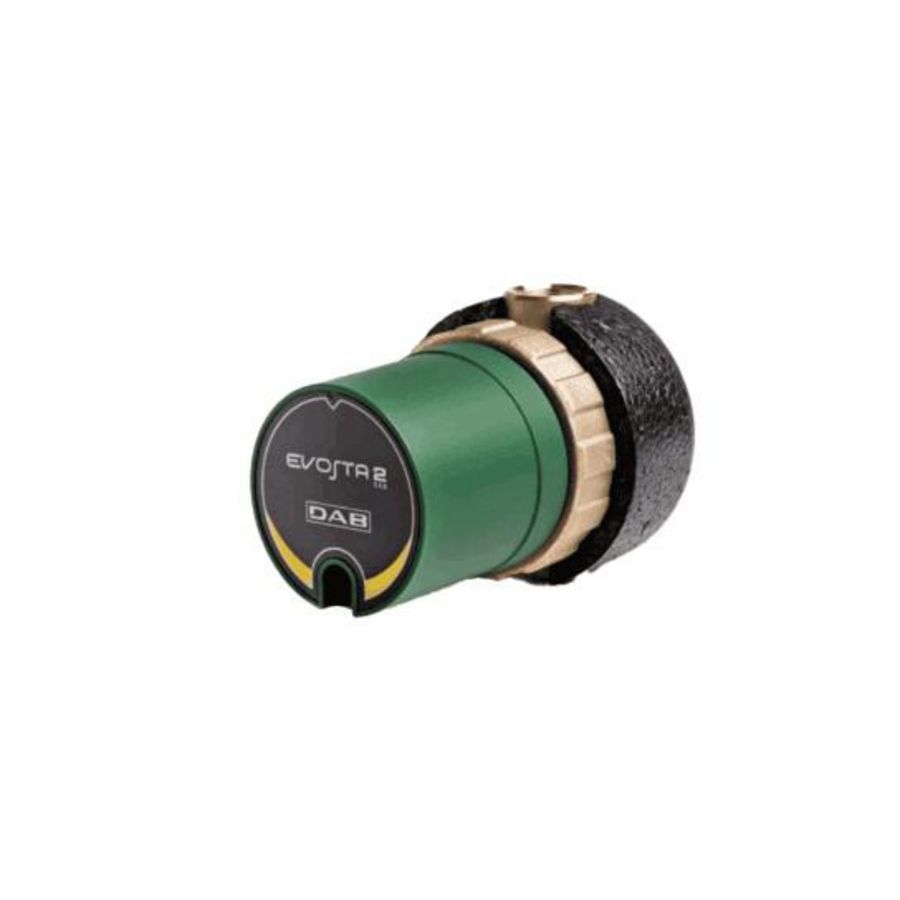

Circulatiepomp Evosta2 11/85 san r1/2"circ.450257501 DAB
4514496
MFG #: 60187267
€184,00
/ 1.00
- Aansluiting inlaatzijde: Buitendraad metrisch
- Aansluiting perszijde: Buitendraad metrisch
- Aantal fasen: 1
- Beschermingsgraad (IP): IP42
- Communicatie: Ingebouwd
- Druk bij volumestroom (BEP): 2,1 kPa
- Druktrap flens aansluiting inlaatzijde: PN 10
- Dubbelpomp: Nee
- Elektrische aansluiting: Aansluitsnoer met stekker
- Energie Efficiëntie Index (EEI): 0,18
- Flensvorm: Rond
- Frequentie: 50/60 Hz
- Inbouwlengte: 85 mm
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Nee
- Interface signaal 0-10 V / 2-10 V: Nee
- Interface signaal 0-20 mA / 4-20 mA: Nee
- Interface signaal PT100 / PT1000 / PTC: Nee
- Isolatieklasse volgens IEC: F
- Kabellengte: 1,5 m
- Kwaliteitsklasse materiaal waaier: Overig
- Kwaliteitsklasse pomphuis: Brons (Rg 5)
- Materiaal pomphuis: Brons
- Materiaal waaier / pompwiel: Overig
- Max. debiet: 0,6 m³/h
- Max. opvoerhoogte: 1,1 m
- Max. werkdruk: 10 bar
- Merk: DAB
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Nee
- Nom. diameter aansluiting inlaatzijde: Overig
- Nom. diameter aansluiting perszijde: Overig
- Nom. spanning: 115 - 230 V
- Nom. stroom: 0,07 A
- Ondersteunt protocol voor BACnet IP: Nee
- Ondersteunt protocol voor BACnet MS / TP: Nee
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Nee
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Nee
- Ondersteunt protocol voor Modbus TCP: Nee
- Ondersteunt protocol voor PROFIBUS: Nee
- Ondersteunt protocol voor PROFINET IO: Nee
- Opgenomen motorvermogen (P1): 0,01 kW
- Pompschakeling: Overig
- Serie: EVOSTA2 11/85 SAN
- Toerenregeling motor: Ingebouwd
- Toerental: 2900 1/min
- Type: ELECTRONIC CIRCUL
- Type toerenregeling: Traploos
- Volumestroom (BEP): 0,61 m³/h
